Description

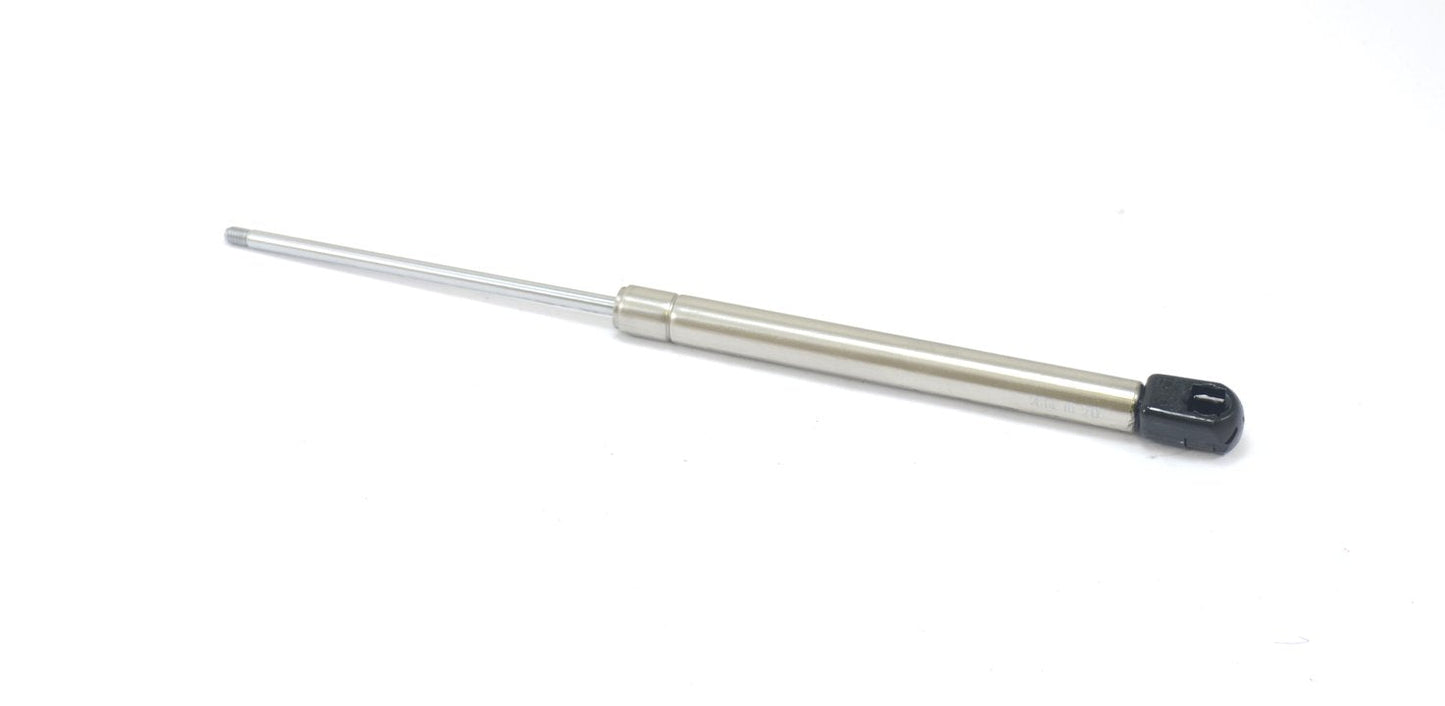

8/18 316 Grade Stainless Steel Gas Strut 50 – 700N
Our 8/18 diameter gas struts are a reliable and versatile gas spring that are ideal for a range of applications. The 8/18 refers to the diameters of the piston rod and cylinder, respectively. Our gas struts are carefully engineered to deliver the precise level of support and dampening required.
Our gas struts operate by utilizing a pressurized cylinder filled with nitrogen gas and a piston rod that moves in and out of the cylinder. By controlling the movement of the load, the gas strut delivers superior support and dampening, enhancing the overall performance of your application.
Our gas struts also provide the following benefits: Non-corrosive guide block, maze dampening system, and a vulcanized sealing system. They are manufactured under automated processes and made to ISO/TS 16949 standards. The shaft treatment has 150 hours of salt nitride testing and is guaranteed for 2 years or 20,000 cycles.
Gassprings EU promise to deliver high-quality products at competitive rates with reliability and attention to detail. We’re constantly refining, developing, and pioneering new products and strive to be the market leaders in product development.
| Product Code |
A. Extended Length |
B. Stroke Length |
C. Compressed Length |
Thread Pitch |
Newton Force Range |
|---|---|---|---|---|---|
| K310SS-18-115 | 310 | 115 | 195 | M6x1.0 | 50 - 700N |
| K315SS-18-120 | 315 | 120 | 195 | M6x1.0 | 50 - 700N |
| K325SS-18-125 | 325 | 125 | 200 | M6x1.0 | 50 - 700N |
| K350SS-18-140 | 350 | 140 | 210 | M6x1.0 | 50 - 700N |
| K390SS-18-160 | 390 | 160 | 230 | M6x1.0 | 50 - 700N |
| K400SS-18-165 | 400 | 165 | 245 | M6x1.0 | 50 - 700N |
| K410SS-18-165 | 410 | 165 | 245 | M6x1.0 | 50 - 700N |
| K450SS-18-185 | 450 | 185 | 265 | M6x1.0 | 50 - 700N |
| K510SS-18-215 | 510 | 215 | 295 | M6x1.0 | 50 - 700N |
| K525SS-18-225 | 525 | 225 | 300 | M6x1.0 | 50 - 700N |
| K585SS-18-255 | 585 | 255 | 330 | M6x1.0 | 50 - 700N |
| K610SS-18-270 | 610 | 270 | 340 | M6x1.0 | 50 - 700N |
| K710SS-18-320 | 710 | 320 | 390 | M6x1.0 | 50 - 700N |
The images provided are solely for illustrative purposes and the final product may vary from the visuals projected. Check out our other items!
