Description

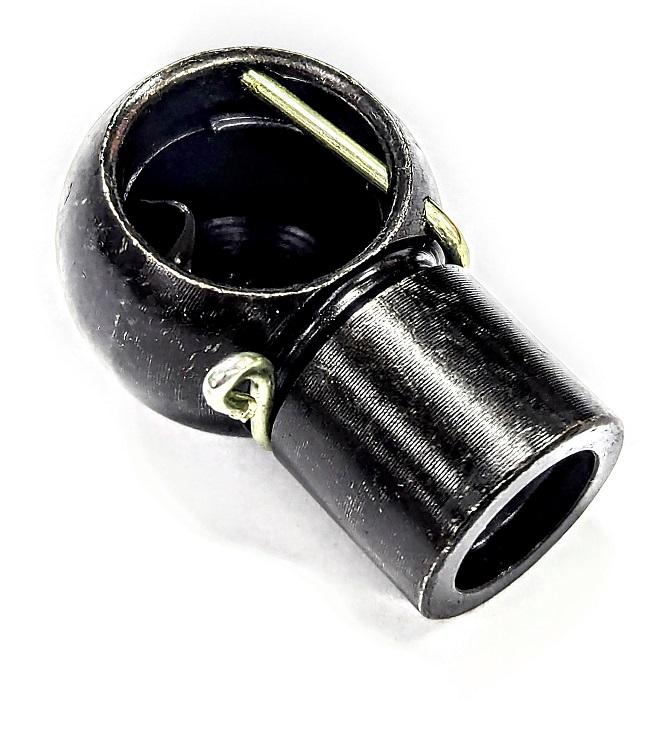

Steel ball cup, for 16 mm ball, 25 mm centres, M10 × 1.5 thread, with external clip. Connects the end of the gas spring to the ball stud: it clips on and carries the pivot through the whole travel.
- Ball diameter: 16 mm
- Centre distance: 25 mm
- Thread: M10 × 1.5
- Material: Steel
- SKU: KBCM16-25EM10
M10 × 1.5 thread — the one fitted to our 14/28 gas springs, in both steel and stainless.
Shipped from our warehouse in Picanya (Valencia, Spain) across the European Union. If the size you need is not listed, get in touch and we will source it.
